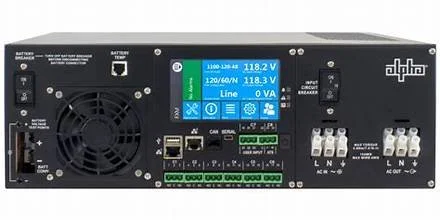

Alpha Technologies FXM-HP UPS
Industrial Grade UPS Emergency Power
The Alpha Technologies FXM-HP UPS is a rugged, industrial grade, single phase UPS emergency power system providing ultra reliable, advanced power protection for computers, network switches, industrial control, PLC and manufacturing needs.
Providing output capacities of 650 watts, 1100 watts or 2000 watts with voltages of 120VAC or 240VAC. Power systems are configured for hardwire input and output. Receptacles solutions can be provided.
Rugged, High Temperature Rated
Designed for non data room deployments, the FXM-HP UPS emergency power system is high temperature rated, designed for outdoor or industrial deployments.
This rugged UPS emergency power systems is the UPS of choice for municipal and industrial grade deployments.
Battery Charging, Extended Runtimes
The Alpha FXM-UPS is a high capacity battery charging system, designed for deep cycle, AGM, sealed, lead acid batteries.
650W, 1100W, 2000W UPS Rated Capacities
Rugged, Indoor Outdoor UPS Emergency Power
Municipal, Industrial 120VAC UPS Power Protection
On battery runtimes of 1 to 4 hours can be provided utilizing 12 volt 55. amp hour or 80.0 amp hour batteries.
The Alpha FXM-HP provides three stage battery charging and is provided with a battery temp probe standard.
The Alpha FXM-HP UPS comes standard with ethernet RJ45 and dry contact communication.
Custom Configuration Services Provided
Standard configurations for the FXM-HP UPS include the UPS, it’s battery wiring harness and a 48VDC deep cycle battery system.

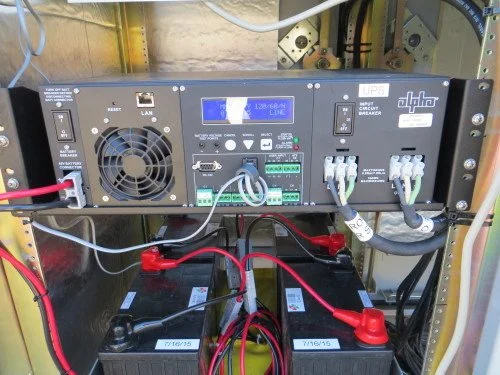

Equipment room enclosures are also provided for deploying the UPS and the battery system.
SBC Data Power provides pre-configured solutions for the Alpha FXM-HP UPS.
Please contact us direct to review the specifics or your site requirements.
Alpha Technologies Novus FXM-HP UPS - 120VAC
UPS Models Part No. Watts/VA Voltage Input/Output Battery Voltage
Novus FXM 650 017-234-31 650 / 650 120 Hardwire 48VDC
Novus FXM 1100 017-232-23 1100 /1100 120 Hardwire 48VDC
Novus FXM 2000 017-232-31 2000 / 2000 120 Hardwire 48VDC
UPS Battery Configuration Services

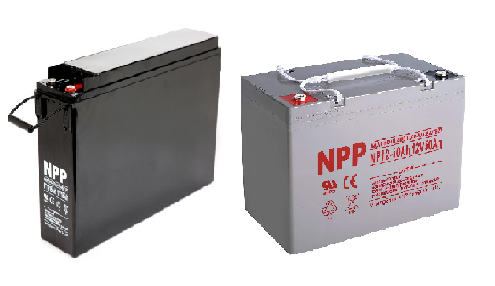

SBC Data Power provides industrial grade, deep cycle, sealed battery configurations
utilizing industry leaders NPPower Intl., Deka / East Penn Manufacturing and Kijo NEPO Batteries.
Solutions include 24VDC, 48VDC, 125VDC and 130VDC configurations utilizing front terminal
and top terminal deep cycle batteries. Please contact us for application specifics.
