TSI Power XUPS Outdoor UPS Systems
Outdoor, Weatherproof Enclosures UPS Power
TSI Power provides the ultra reliable XUPS series of outdoor rated UPS emergency power systems. The XUPS is an outdoor approved line interactive UPS emergency power system, utilized for security, communication and municipal power applications.
The TSI Power XUPS systems provide output capacities of 600VA, 1000VA, 2200VA and 3000VA. Systems are pre-configured for specific voltages and on-battery runtime requirements.
Output voltages provided are 120VAC, 208VAC or 240VAC. Please contact us for pricing and applications specifics

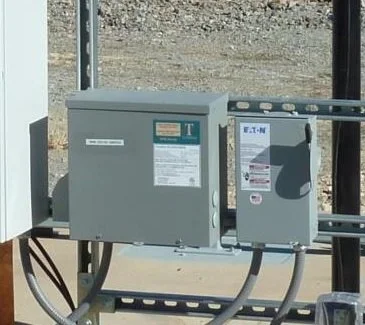

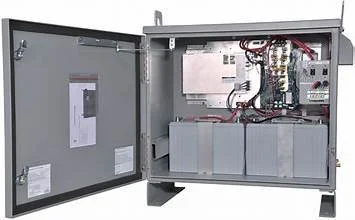

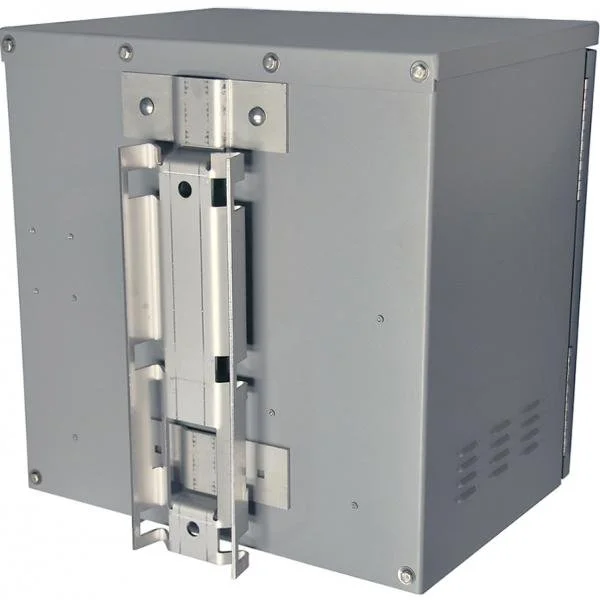

Pad, Pole or Wall Mount Enclosures
The TSI Power XUPS UPS systems are designed for pad, pole mount or wall mount deployments. Enclosures meet UL-50E standards for equipment weather protection.
High Temperature , NEMA 3R Rated Enclosures

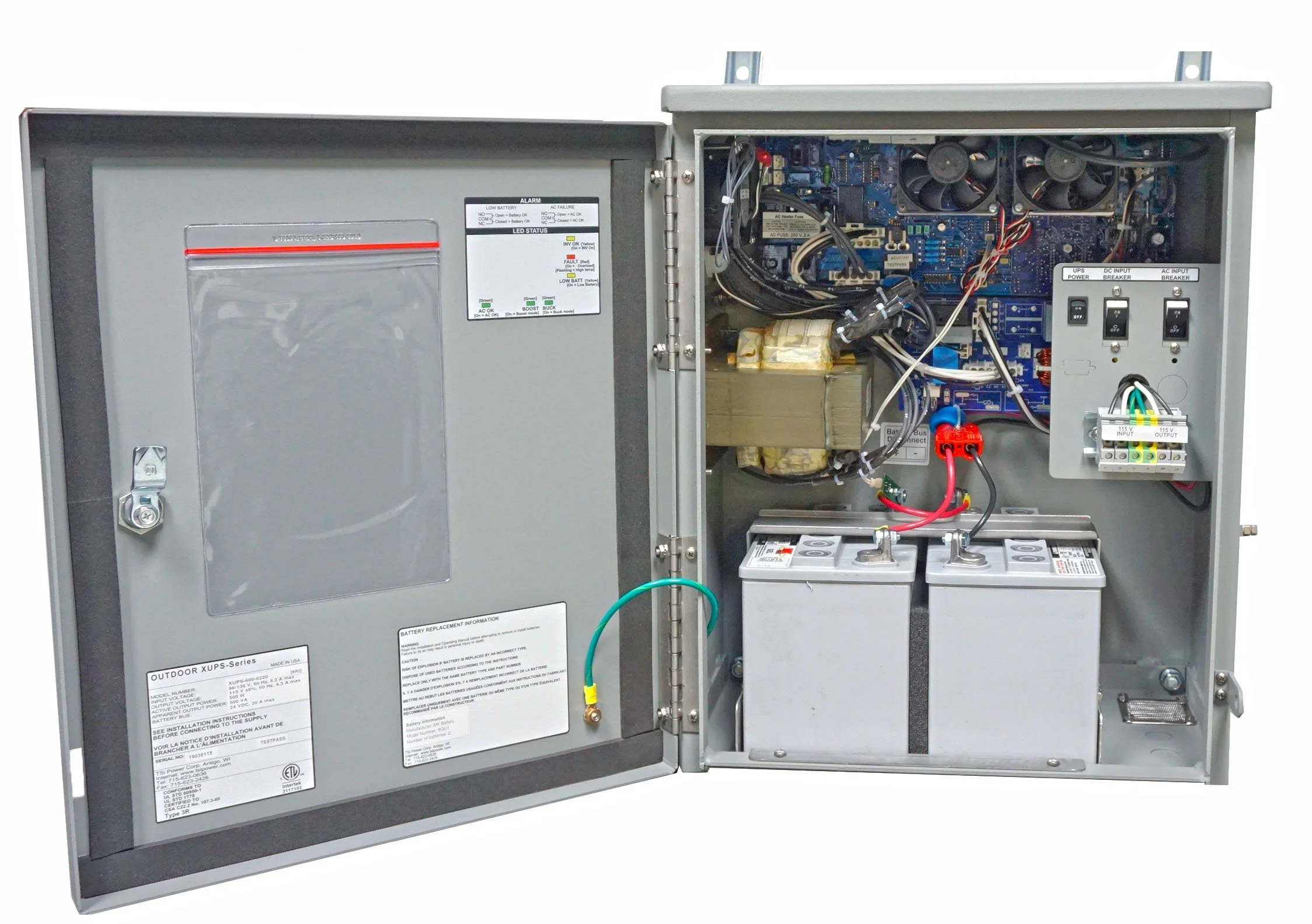

The TSI Power XUPS features a wide operating temperature, are generator friendly and have moisture protective coatings. The enclosures are weatherproof, NEMA 3R rated include extended battery runtime options. Systems ship fully assembled, are compact in size and designed for easy deployment.
600VA- 3000VA Outdoor UPS Capacities
120VAC 240VAC NEMA 3R Outdoor UPS Power
Pad, Pole or Wall Mount Enclosures / Battery Systems
Harsh Weather Approved, Wide Operating Temperatures
Extended On-Battery Runtime Battery Options
Capacities 600VA, 1000VA, 2200VA, 3000VA UPS Configurations
Surge Protection, Filtered Output
The TSI Power XUPS emergency power system provides heavy duty surge protection and electrical noise filtering for critical, connected equipment. Power systems meet UL90560-22 standards for over voltage protection.
Battery Charging, Extended Runtimes
The TSI Power XUPS is a high capacity battery charging system, designed for deep cycle, AGM, sealed, lead acid or gel batteries.
The TSI Power XUPS can be configured with extended on-battery runtimes, of 6 hours can be provided.
The XUPS has many features, including Internal cooling fans, an integrated maintenance bypass switch and multiple communication options.
Let’s Configure Your System -
TSI Power is a leading manufacturer of critical outdoor power systems Let SBC Data Power assist you with configuring the XUPS critical power system.
Please contact us direct to review the specifics of your site requirements.
TSI Power XUPS Features
Harsh weather enclosures
Wide operating temperature
Surge Protection - Automatic voltage regulation
Pad, pole or wall mount, internal cooling fans, integrated internal bypass switch
NEMA 3R rated enclosures for harsh environments
Surge protection and noise filtering provided
Meets outdoor UL 60950-22 standard, UL- 50E rain – test
TSI Power Outdoor UPS Specifications
Model Output Capacity Voltage Mounting Dimension (W x H x D)
TSI XUPS Compact 500 – 1540 W 120VAC - 240VAC Wall,Pole 16.5 x 20.5 x 9.5″
TSI XUPS Plus 500 – 1050 W 120VAC - 240VAC Wall,Pad,Pole 24.0 x 24.0 x 12.0″
TSI XUPS Extended 500 – 2250 W 120VAC - 240VAC Wall,Pad,Pole 24.0 x 24.0 x 17.1″
TSI XUPS Large 500 – 2250 W 120VAC - 240VAC Wall,Pad,Pole 28.8 x 24.0 x 17.1″
TSI XUPS XL 500 – 2250 W 120VAC - 240VAC Wall,Pad,Pole 36.0 x 36.0 x 13.5″
TSI Power provides many different configurations for the XUPS emergency
power systems. Extended runtimes, network communication, power capacities,
are all power supply configuration options for the XUPS outdoor power system.
Need to Install Your Own Equipment -
Know the TSI Power XUPS enclosures can be sized so that internal space is
available for mounting your own radio, computer or telecommunications
equipment inside enclosure.
Please contact us direct to configure the XUPS outdoor UPS emergency power
system for your site requirements.
UPS Battery Configuration Services
SBC Data Power provides industrial grade, deep cycle, sealed battery configurations
utilizing industry leaders NPPower Intl., Deka / East Penn Manufacturing and Kijo NEPO Batteries.
Solutions include 24VDC, 48VDC, 125VDC and 130VDC configurations utilizing front terminal
and top terminal deep cycle batteries. Please contact us for application specifics.
